Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°

Fixed-axis 20mm diameter linear stepper motor, with step angles of 7.5° and 15° available.

5V linear stepper motor, fixed-axis diameter 36mm, travel 16mm.

This is a permanent magnet linear stepper motor. It converts rotational motion into linear motion through the relative movement of the internal rotor and lead screw. As the rotor rotates continuously, the lead screw moves forward or backward. This series of motors is available in three structures: fixed-axis, through-axis, and externally driven.

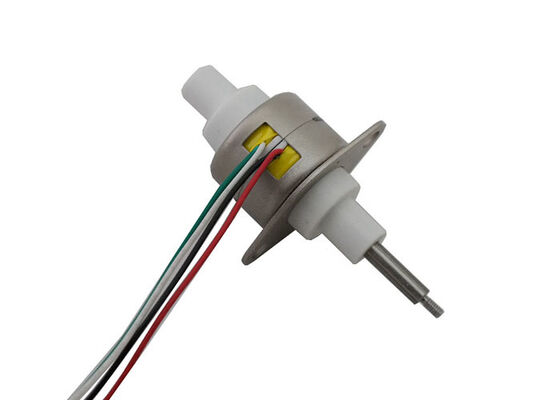

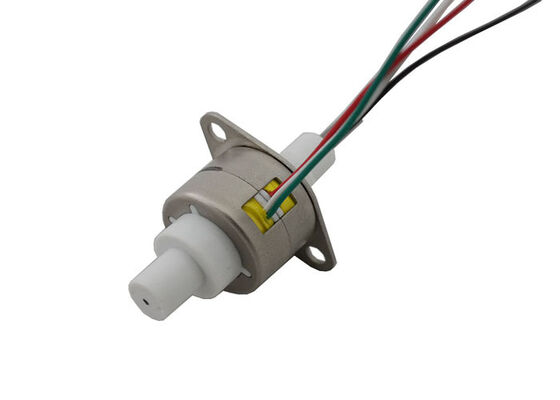

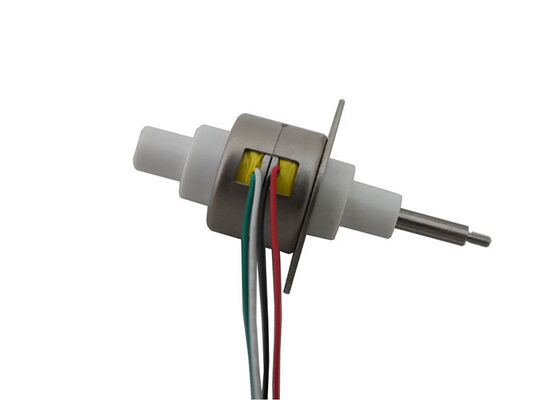

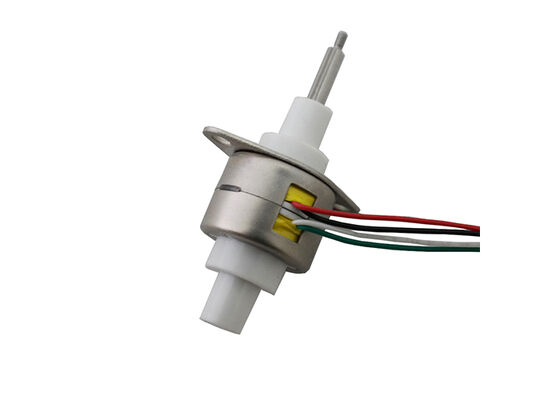

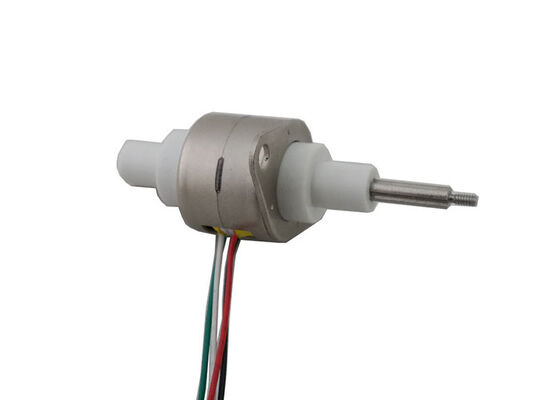

The image shows a fixed-axis linear stepper motor.

External wiring can be customized according to customer requirements.

Mainly used in valve control, textile machinery, automatic buttons, robotics, medical equipment robots, and related fields.

If you need this motor, please feel free to contact us!

Mechanical Dimension:MM

Technical Features


This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.

Typical Applications

• Medical Equipment

• Automatic Control

• 3D Printer

• Precision Calibration

• Precision Fluid Measurement

• Precise Position Movement

Specifications

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and rich inventory

• Near Shanghai port, the traffic is very convenient.

Product Detail Presentation
